Analog Lab Week 12 Assignment

By: Charlie Reynolds

R1 value = 200k ohms

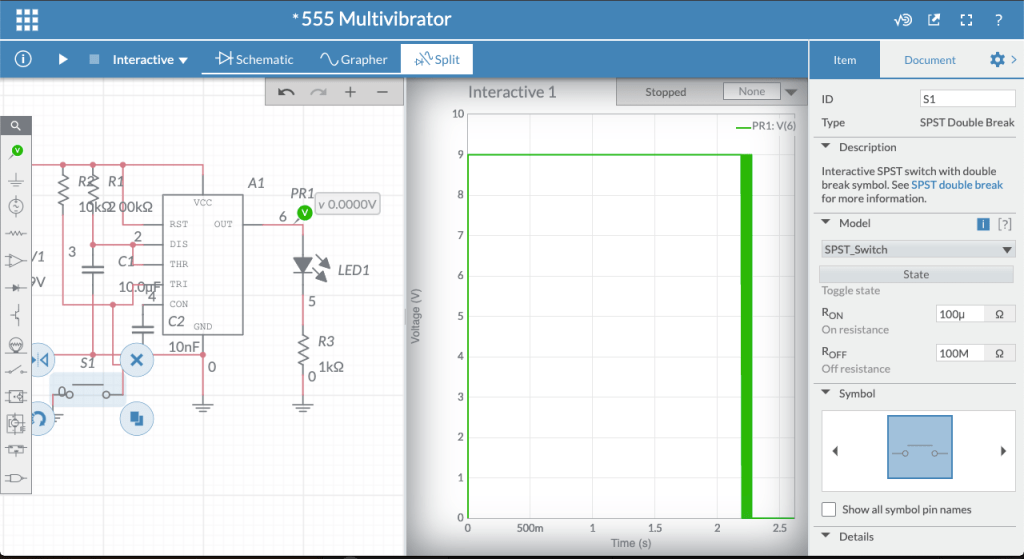

https://www.multisim.com/content/RvNvTAgawFRdQr2hfDzjjf/555-monostable-multivibrator/open/

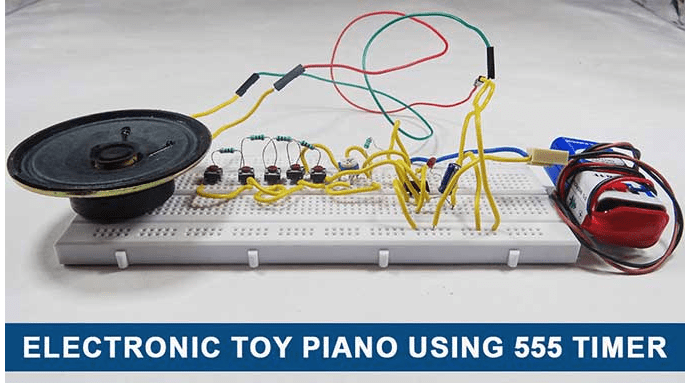

https://www.electronicshub.org/toy-organ-circuit-using-555-timer-ic/

I found this circuit that utilizes a 555 timer operating in astable multivibrator mode. The astable multivibrator mode creates “free running waveforms which can be adjusted”. Using resistors in series, the different buttons can use different amounts of cumulative resistance to create 5 different tones.
